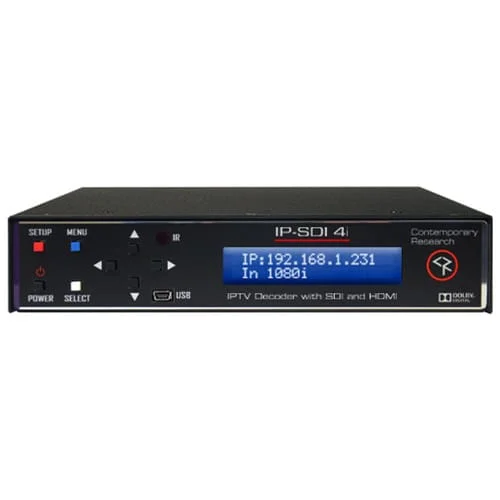

Contemporary Research IP-SDI 4i IPTV Decoder with Universal Rackmount
$1,524.00
Only logged in customers who have purchased this product may leave a review.
Related products
-
NMX-ENC-N2312-C Encoder Card
$1,391.00 Add to cartNMX-ENC-N2312-C Encoder Card
The NMX-ENC-N2312 Encoder and NMX-DEC-N2322 Decoder provide a flexible, feature-rich, and simple-to-deploy Digital Media Distribution and Switching solution that can be used in 4K applications with resolutions up to 4096×2160, with support for HDCP 2.2. This motion-based wavelet codec solution delivers video with nearly imperceptible latency at an incredibly low 200 Mb/s bandwidth allowing 4K distribution over standard gigabit Ethernet networks.
Any source can be sent to one or more displays by routing through layer-2 / layer-3 switches utilizing standard Cat5e cable. The NMX-ENC-N2312 includes standard features like input scaling, bi-directional serial, IR, embedded 7.1 audio, and KVMover- IP extension. It also comes in a card version compatible with SVSI’s N9206 card cage for high-density applications.
Specifications
Video - Digital Video Input
- HDMI 2.0, DVI-D* (through adapter), Dual-Mode DisplayPort (DP++)*
*These signal types are supported through a passive adapter
- Analog Video Input: HD-15 VGA
- Video Output
- Network video over Ethernet via RJ45 port or SFP via 1G SFP+ port, HDMI, DVI-D*
*These signal types are supported through a passive adapter
- Formats
- HDMI 2.0, DVI-D (through adapter), Dual-Mode DisplayPort (DP++), HDCP 2.2 content protection support, RGBHV
- DVI-D and Dual-Mode DisplayPort (DP++) are supported through a passive adapter
- Progressive Input Resolutions
- Supports 4K30 4:2:0 and most common HD resolutions up to 1920×1200
- See NMX-ENC-N2312 Installation Manual for all supported resolutions
- HDMI and DVI (Progressive)
- Pixel clock between 27 MHz – 300MHz
- Minimum resolution of 720x480p60
- Maximum horizontal resolution of 4096 or a vertical resolution of 2160*
- Common acceptable resolutions include:ÂÂ
720x480p60 – 480p, 720×576@50, 800x600p60, 1024x768p60, 1280×720@60Hz – 720p60, 1600×1200@60Hz, 1920×1080@60Hz – 1080p60, 3840×2160(4:2:0)@30Hz – UHD30 aka 4K30, 4096×2160(4:2:0)@30Hz – DCI 4K30 - Interlaced Input Resolutions
- Supports 1080i60
- See NMX-ENC-N2312 Installation Manual for all supported resoltuions
- HDMI and DVI (Interlaced)
- 1920×1080@50Hz – 1080i50
- 1920×1080@60Hz – 1080i60
Note: Interlaced resolutions will be de-interlaced if scaled on the decoder; otherwise, the interlaced signal will pass through to the display
- Analog Input Resolutions
- Supports most common HD resolutions up to 1920×1200
- See NMX-ENC-N2312 Installation Manual for all supported resoltuions
- VGA
- Pixel clock between 27 MHz – 165 MHz
- Minimum resolution of 640×480
- Maximum horizontal resolution of 1920 or a vertical resolution of 1200
- Common acceptable resolutions include:ÂÂ
640x480p60, 720x480p60 – 480p, 720×576@50,800x600p60, 1024×768@60Hz, 1280×720@50Hz (720p50), 1280×720@60Hz (720p60), 1280×768@60Hz, 1280×800@60Hz, 1280×960@60Hz, 1280×1024@60Hz, 1360×768@60Hz, 1366×768@60Hz, 1400×1050@60Hz, 1440×900@60Hz, 1600×1200@60Hz, 1680×1050@60Hz, 1920×1080@50Hz (1080p50), 1920×1080@60Hz (1080p60), 1920×1200@60Hz (reduced blanking)
Note: Input resolutions supported @60Hz refresh rates are also supported @59.94Hz
The N2312 Encoder does not accept Composite or SVideo (YC)
- Analog-To-Digital Conversion: 8-bit 165 MHz per each of three color channels
- Color Space: 4:2:0 4K30, 4:2:2 – HD
- LocalPlay/HostPlay: 8 playlists
- HostPlay: 1 image/list
- Note: Jumbo Frames Required
- Video Wall Construction: Supported within the NMX-DEC-N2322, the N2300 Series is not compatible with SVSI Windowing Processors at this time
- Network Video Recording: Not compatible with SVSI NVR at this time
Audio - Input Signal Types: Embedded audio on HDMI (DVI-D through adapter) or Analog Stereo (Balanced or Unbalanced)
- Output Signal Types: Ethernet, Embedded audio on HDMI or DVI-D (through adapter)
- HDMI Audio Formats: 8ch PCM
- Analog Audio Format: Stereo 2-channel
- Analog-To-Digital Conversion: 48 kHz
Keyboard and Mouse Keyboard & Mouse: Connect the Decoder to the keyboard and mouse, and an N2300 Series Encoder to the PC being controlled Latency - Latency
- 17-ms at 60 fps for 1920×1080 and lower resolutions
- 34-ms at 30 fps for 4K30
NOTE: This is the combined encode plus decode latency. Total latency from source to screen will also include any network latency. Scaling adds one frame of latency (17ms at 60fps)
- Switching: Up to 1.5s delay, not seamless
Bandwidth - Bandwidth: Approximately 160 Mb/s
Note: Minimum bandwidth is 50 Mb/s for resolutions <= 1080p60
Communications - Ethernet – PO
- 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP
- Ethernet – P1
- 1 Gbps port which accepts compatible fiber transceivers or direct attach cables, DHCP, Auto IP, and static IP
- HDMI: HDCP, EDID management
Ports - +12V 2A: One 12 Volt DC power input
- PO
- 8-wire RJ45
- 10/100/1000 Mbps 10/100/1000Base-T auto-sensing gigabit Ethernet switch port
- Provides network connection, network AV video, and power to the Encoders and Decoders PoE power
- P1
- 1-Gbps SFP+ port (SFP+ fiber transceiver or direct attach cable not included)
- Provides network connection and networked AV video
- IR IN (front panel): 3-pin terminal Phoenix connector. Provides Infrared (IR) input only and passes signal back to connected decoder (33-60 kHz; typically 39 kHz) IR receiver is necessary (not included)
- IR OUT
- 2-pin terminal Phoenix connector
- Provides Infrared (IR) output only (33-60 kHz; typically 39 kHz). Emitter is necessary (not included)
- RS232
- 3-pin terminal Phoenix connector which provides a serial control interface. Full duplex communication.
- Available terminal speed settings: 1200-115200 baud rate
- AUDIO
- 5-pin terminal Phoenix connector which provides userselectable balanced/unbalanced input
- Dedicated audio input
- HDMI OUT: HDMI video output (passive pass-through from HDMI IN)
- HDMI IN: HDMI video input
- VGA IN: DB15 analog input
Controls and Indicators – Front Panel - RESET Button
- Recessed pushbutton
- Press to initiate a ‘warm restart’ causing the processor to reset, but not lose power. A reset does NOT affect the current settings
- ID Button
- Recessed pushbutton
- Press to send a notification out on the network to identify the unit (the notification causes a pop-up dialog in N-Able and N-Command)
- POWER LED
- On solid (green) when operating power is supplied (via PoE or local power supply)
- This activity is also shown by the PWR LED on the rear panel
- STATUS LED
- On flashing (green) when there is software activity
- This activity is also shown by the STAT LED on the rear panel
Controls and Indicators – Rear Panel - PWR LED: Same as POWER LED described above
- HDMI LED: On (green) when there is a connection to a valid HDMI source but will not light for VGA source
- STAT LED: Same as STATUS LED described above
- STRM LED: On (green) when the unit is streaming video
- FAN: None
Environmental - Temperature: 32° to 104°F (0° to 40°C)
- Humidity: 10% to 90% RH (non-condensing)
- Heat Dissipation: Up to ~44 BTU/hr
General - Mounting Options
- Regulatory Compliance: FCC, CE, and NTRL
- Recommended Accessories NMX-ACC-N9206 (FGN9206), 2RU Rack Mount Cage with Power for Six SVSI N-Series Card Units
FG Numbers FGN2312-CD $1,391.00 -
AMX NMX-ENC-N1122A-C, Encoder Card
$1,600.00 Add to cartAMX NMX-ENC-N1122A-C, Encoder Card
The N1000 series encoders and decoders are an affordable local AV over IP switching solution that packetizes video into a minimally compressed IP format to create anywhere from a small seamless presentation switcher up to a mid-size matrix switcher using off-the-shelf network switches.
-
1 lbs
$1,600.00 -
-
NMX-ENC-N3132 Encoder
$1,465.00 Add to cartNMX-ENC-N3132 Encoder
The N3000 Video over IP Series extends the reach of SVSI’s Networked AV solutions to the WAN for streaming, video to desktop, digital signage, set-top boxes, or mobile devices applications. Fully integrated with existing Networked AV control options, the N3000 Series delivers the highest quality HD video content at the lowest bandwidth for the most demanding applications. Moving video to or from the Cloud just became a lot easier with the N3000.
The N3000 Series’ H.264 compression engine delivers low-latency 1080p60 video at half the bandwidth of comparable encoders. High profile H.264 encoders output unicast or multicast to one or more N3000 Series decoders. Multiple selectable streaming protocols (RTP, RTSP, and more) allow for software endpoints during video to the desktop applications or third-party hardware endpoints like Roku, Amino, or Google TV. Adjustable bit-rates from 32-Kbps to 10-Mbps give the highest video fidelity at the lowest bandwidths on the market in keeping with SVSI’s commitment to provide unsurpassed Networked AV quality.
H.264 encoder includes IR, serial, balanced audio, RJ45 and 1GB SFP (fiber or copper) network connections, digital HDMI and analog VGA video input. H.264 encoder card requires NMXACC-N9206 cage.
Specifications
Digital Video Input HDMI, DVI-D, Dual-Mode DisplayPort (DP++), RGB/VGA; DVI-D and Dual-Mode DisplayPort (DP++) are supported through a passive adapter Analog Video Input HD-15 VGA, Component, supported through a passive adapter Video Outputs Network video over Ethernet via RJ45 port or fiber via 1G SFP port, HDMI, DVI-D (through passive adapter) Video Formats HDMI, DVI-D (through passive adapter), HDCP content protection support, RGBHV, YPbPr Progressive Input Resolutions Supports most common HD up to 1080p60. See Data Sheet for details. Interlaced Input Resolutions Supports 1080i60. See Data Sheet for details. Analog Input Resolutions Supports most common HD up to 1080p60. See Data Sheet for details. Analog-To-Digital Conversion 8-bit 165 MHz per each of three color channels Audio Input Signal Types Embedded audio on HDMI (DVI-D through adapter) or Analog Stereo (Balanced or Unbalanced) Audio Output Signal Types Ethernet, Embedded audio on HDMI or DVI-D (through adapter); HDMI output refers to pass-through video on the HDMI OUT port HDMI Audio Formats Stereo 2-channel Analog Audio Formats Stereo 2-channel Audio Analog-to-Digital Conversion 16-bit 32 kHz, 44.1 kHz and 48 kHz Latency 175 ms at 60 fps. See Data Sheet for details. Communications Ethernet: 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP; HDMI: HDCP, EDID management. See Data Sheet for details. FG Numbers FGN3132-SA $1,465.00 -
AMX NMX-ENC-N1122A-SA, Encoder
$1,650.00 Add to cartAMX NMX-ENC-N1122A-SA, Encoder
The NMX-ENC-N1122A provides users with two RJ-45 network ports (one PoE). All MPC N1000 series offers output scaling, serial, balanced audio, and HDMI video connection as well as AES67 support. The N1000 series is the perfect solution for in-room or small to mid-size video matrice, particularly in scenarios that require imperceptible latency. The N1000 series encoders are an affordable local AV over IP switching solution that packetizes video into a minimally compressed IP format to create anywhere from a small seamless presentation switcher up to a mid-size matrix switcher using off-the-shelf network switches.
-
1 lbs
$1,650.00 -
