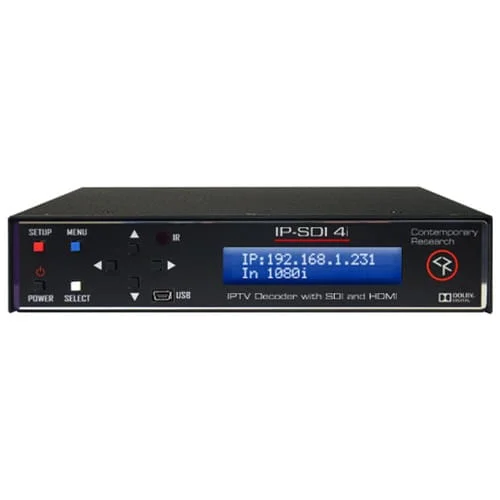

Contemporary Research IP-SDI 4i IPTV Decoder with Universal Rackmount

Related products

•

  Contemporary Research QCA9-33 Active RF Combiner with 8 High-Level + 1 Low-Level Inputs

  $313.00 Add to cart

  Contemporary Research QCA9-33 Active RF Combiner with 8 High-Level + 1 Low-Level Inputs

  Contemporary Research QCA9-33 Overview

  The Contemporary Research QCA9-33 is an active RF combiner that includes eight high-level inputs and one low-level input, combining with high isolation as well as amplifying up to a 33 dBmV output level. Designed for QMOD HDTV applications, the eight RF inputs typically receive 29 dBmV RF from QMOD HDTV modulators. The ninth input is for up to 19 dBmV RF signals, such as incoming cable feed, a control channel from an ICE-HE Head End control modulator, or any other QMOD or QCA9-33. Up to eight QCA9-33 combiners can feed a single combiner to deliver up to 76 channels. The low-noise, wideband 860 MHz amplifier compensates for combining losses and adds 3 dBmV of gain, typically supplying a total output of up to 33 dBmV. This compact unit mounts in a single rack space using CR RK1 and RK-2 rack kits (available separately), and can be mixed with QMOD HDTV modulators using the same rack kits.

  Product Highlights

  Compatibility

  QMOD HDTV modulators
  ICE-HE Head End control modulator
  QDA4-45 amplifier combiner

  • Tunes analog and digital channels in ATSC, NTSC, and clear QAM formats
  • Combines eight high-level channels (QMOD 29 dBmV) and one low level input (cable, ICE-HE at 10-18 dBmV)
  • Cascade multiple units for up to 72 channels in one array
  • Low-noise, 860 MHz wideband amplifier
  • Compensates for combining losses and adds 3 dBmV gain
  • Provides a maximum output level of up to 33 dBmV
  • Provides high-isolation combining
  • Operates with an extremely low noise figure of 1.8, low power of less than 2W
  • Compact metal enclosure, mounts in 1 RU using RK1 and RK2 rack kits (available separately)
  • Made in USA

  Applications

  • Use the QCA9-33 as a 9-channel, 30 dB amplifier for small to medium-sized RF applications
  • Can be used with nine QMOD modulators, or eight QMOD modulators plus ICE-HE Head End, or eight QMOD modulators plus cable feed
  • Feed output to a second CCA9-33 to combine up to 17 channels
  • Feed eight QCA9-33 units to one QCA9-33 to combine 64 or more channels without signal loss
  • Feed four QCA9-33 units into a QDA4-45 to distribute up to 36 channels
  • Feed combined output to a launch amplifier for larger systems

  SKU: 5081‐001 Categories: DPA Microphones E/C, Encoders/Decoders, RF Combiner / Distribution Brand: DPA Microphones

  $313.00
•

  AMX N2300 Series 4K UHD Video over IP Stand Alone Encoder

  $1,396.00 Add to cart

  AMX N2300 Series 4K UHD Video over IP Stand Alone Encoder

  The NMX-ENC-N2312 Encoder and NMX-DEC-N2322 Decoder provide a flexible, feature-rich, and simple-to-deploy Digital Media Distribution and Switching solution that can be used in 4K applications with resolutions up to 4096×2160, with support for HDCP 2.2. This motion-based wavelet codec solution delivers video with nearly imperceptible latency at an incredibly low 200 Mb/s bandwidth allowing 4K distribution over standard gigabit Ethernet networks.

  Any source can be sent to one or more displays by routing through layer-2 / layer-3 switches utilizing standard Cat5e cable. The NMX-ENC-N2312 includes standard features like input scaling, bi-directional serial, IR, embedded 7.1 audio, and KVMover- IP extension.

  • Shipping Weight
    1 lbs

  SKU: FGN2312-SA Categories: AMX, Encoders, Encoders/Decoders Brand: AMX

  $1,396.00
•

  NMX-ENC-N2312-C Encoder Card

  $1,391.00 Add to cart

  NMX-ENC-N2312-C Encoder Card

  The NMX-ENC-N2312 Encoder and NMX-DEC-N2322 Decoder provide a flexible, feature-rich, and simple-to-deploy Digital Media Distribution and Switching solution that can be used in 4K applications with resolutions up to 4096×2160, with support for HDCP 2.2. This motion-based wavelet codec solution delivers video with nearly imperceptible latency at an incredibly low 200 Mb/s bandwidth allowing 4K distribution over standard gigabit Ethernet networks.

  Any source can be sent to one or more displays by routing through layer-2 / layer-3 switches utilizing standard Cat5e cable. The NMX-ENC-N2312 includes standard features like input scaling, bi-directional serial, IR, embedded 7.1 audio, and KVMover- IP extension. It also comes in a card version compatible with SVSI’s N9206 card cage for high-density applications.

  Specifications

  Video	Digital Video Input HDMI 2.0, DVI-D* (through adapter), Dual-Mode DisplayPort (DP++)* *These signal types are supported through a passive adapter Analog Video Input: HD-15 VGA Video Output Network video over Ethernet via RJ45 port or SFP via 1G SFP+ port, HDMI, DVI-D* *These signal types are supported through a passive adapter Formats HDMI 2.0, DVI-D (through adapter), Dual-Mode DisplayPort (DP++), HDCP 2.2 content protection support, RGBHV DVI-D and Dual-Mode DisplayPort (DP++) are supported through a passive adapter Progressive Input Resolutions Supports 4K30 4:2:0 and most common HD resolutions up to 1920×1200 See NMX-ENC-N2312 Installation Manual for all supported resolutions HDMI and DVI (Progressive) Pixel clock between 27 MHz – 300MHz Minimum resolution of 720x480p60 Maximum horizontal resolution of 4096 or a vertical resolution of 2160* Common acceptable resolutions include:  720x480p60 – 480p, 720×576@50, 800x600p60, 1024x768p60, 1280×720@60Hz – 720p60, 1600×1200@60Hz, 1920×1080@60Hz – 1080p60, 3840×2160(4:2:0)@30Hz – UHD30 aka 4K30, 4096×2160(4:2:0)@30Hz – DCI 4K30 Interlaced Input Resolutions Supports 1080i60 See NMX-ENC-N2312 Installation Manual for all supported resoltuions HDMI and DVI (Interlaced) 1920×1080@50Hz – 1080i50 1920×1080@60Hz – 1080i60 Note: Interlaced resolutions will be de-interlaced if scaled on the decoder; otherwise, the interlaced signal will pass through to the display Analog Input Resolutions Supports most common HD resolutions up to 1920×1200 See NMX-ENC-N2312 Installation Manual for all supported resoltuions VGA Pixel clock between 27 MHz – 165 MHz Minimum resolution of 640×480 Maximum horizontal resolution of 1920 or a vertical resolution of 1200 Common acceptable resolutions include:  640x480p60, 720x480p60 – 480p, 720×576@50,800x600p60, 1024×768@60Hz, 1280×720@50Hz (720p50), 1280×720@60Hz (720p60), 1280×768@60Hz, 1280×800@60Hz, 1280×960@60Hz, 1280×1024@60Hz, 1360×768@60Hz, 1366×768@60Hz, 1400×1050@60Hz, 1440×900@60Hz, 1600×1200@60Hz, 1680×1050@60Hz, 1920×1080@50Hz (1080p50), 1920×1080@60Hz (1080p60), 1920×1200@60Hz (reduced blanking) Note: Input resolutions supported @60Hz refresh rates are also supported @59.94Hz The N2312 Encoder does not accept Composite or SVideo (YC) Analog-To-Digital Conversion: 8-bit 165 MHz per each of three color channels Color Space: 4:2:0 4K30, 4:2:2 – HD LocalPlay/HostPlay: 8 playlists HostPlay: 1 image/list Note: Jumbo Frames Required Video Wall Construction: Supported within the NMX-DEC-N2322, the N2300 Series is not compatible with SVSI Windowing Processors at this time Network Video Recording: Not compatible with SVSI NVR at this time
  Audio	Input Signal Types: Embedded audio on HDMI (DVI-D through adapter) or Analog Stereo (Balanced or Unbalanced) Output Signal Types: Ethernet, Embedded audio on HDMI or DVI-D (through adapter) HDMI Audio Formats: 8ch PCM Analog Audio Format: Stereo 2-channel Analog-To-Digital Conversion: 48 kHz
  Keyboard and Mouse	Keyboard & Mouse: Connect the Decoder to the keyboard and mouse, and an N2300 Series Encoder to the PC being controlled
  Latency	Latency 17-ms at 60 fps for 1920×1080 and lower resolutions 34-ms at 30 fps for 4K30 NOTE: This is the combined encode plus decode latency. Total latency from source to screen will also include any network latency. Scaling adds one frame of latency (17ms at 60fps) Switching: Up to 1.5s delay, not seamless
  Bandwidth	Bandwidth: Approximately 160 Mb/s Note: Minimum bandwidth is 50 Mb/s for resolutions <= 1080p60
  Communications	Ethernet – PO 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP Ethernet – P1 1 Gbps port which accepts compatible fiber transceivers or direct attach cables, DHCP, Auto IP, and static IP HDMI: HDCP, EDID management
  Ports	+12V 2A: One 12 Volt DC power input PO 8-wire RJ45 10/100/1000 Mbps 10/100/1000Base-T auto-sensing gigabit Ethernet switch port Provides network connection, network AV video, and power to the Encoders and Decoders PoE power P1 1-Gbps SFP+ port (SFP+ fiber transceiver or direct attach cable not included) Provides network connection and networked AV video IR IN (front panel): 3-pin terminal Phoenix connector. Provides Infrared (IR) input only and passes signal back to connected decoder (33-60 kHz; typically 39 kHz) IR receiver is necessary (not included) IR OUT 2-pin terminal Phoenix connector Provides Infrared (IR) output only (33-60 kHz; typically 39 kHz). Emitter is necessary (not included) RS232 3-pin terminal Phoenix connector which provides a serial control interface. Full duplex communication. Available terminal speed settings: 1200-115200 baud rate AUDIO 5-pin terminal Phoenix connector which provides userselectable balanced/unbalanced input Dedicated audio input HDMI OUT: HDMI video output (passive pass-through from HDMI IN) HDMI IN: HDMI video input VGA IN: DB15 analog input
  Controls and Indicators – Front Panel	RESET Button Recessed pushbutton Press to initiate a ‘warm restart’ causing the processor to reset, but not lose power. A reset does NOT affect the current settings ID Button Recessed pushbutton Press to send a notification out on the network to identify the unit (the notification causes a pop-up dialog in N-Able and N-Command) POWER LED On solid (green) when operating power is supplied (via PoE or local power supply) This activity is also shown by the PWR LED on the rear panel STATUS LED On flashing (green) when there is software activity This activity is also shown by the STAT LED on the rear panel
  Controls and Indicators – Rear Panel	PWR LED: Same as POWER LED described above HDMI LED: On (green) when there is a connection to a valid HDMI source but will not light for VGA source STAT LED: Same as STATUS LED described above STRM LED: On (green) when the unit is streaming video FAN: None
  Environmental	Temperature: 32° to 104°F (0° to 40°C) Humidity: 10% to 90% RH (non-condensing) Heat Dissipation: Up to ~44 BTU/hr
  General	Mounting Options Regulatory Compliance: FCC, CE, and NTRL Recommended Accessories NMX-ACC-N9206 (FGN9206), 2RU Rack Mount Cage with Power for Six SVSI N-Series Card Units
  FG Numbers	FGN2312-CD

  SKU: FGN2312-CD Categories: AMX, Encoder Card, Encoders/Decoders Brand: AMX

  $1,391.00
•

  AMX Jpeg 2000 Digital Cinema Grade Video Over IP Decoder, HDMI

  $1,681.00 Add to cart

  AMX Jpeg 2000 Digital Cinema Grade Video Over IP Decoder, HDMI

  The AMX SVSI N2000 Series utilizes JPEG2000 compression for HD, cinema-grade video distribution on the LAN for applications when video quality is top priority. The NMX-DEC-N2212A Decoder is used to decode streams back to DVI or HDMI format for display on any monitor. Pair with the NMX-ENC-N2121A to encode and distribute sources of almost any format onto an existing IP network making that stream available to any endpoint in the facility. With the ability to direct any source stream to any display, large, low-cost switching and distribution systems are simple to deploy without proprietary cabling or dedicated switching hardware.

  The NMX-DEC-N2212A includes Local Play, allowing users to upload and save 8 playlists that can contain up to 64 jpeg or PNG files. When a video stream is lost, the stored images will play, preventing blank displays.

  • Shipping Weight
    1.4 lbs

  SKU: FGN2212A-SA Categories: AMX, Decoders, Encoders/Decoders Brand: AMX

  $1,681.00
