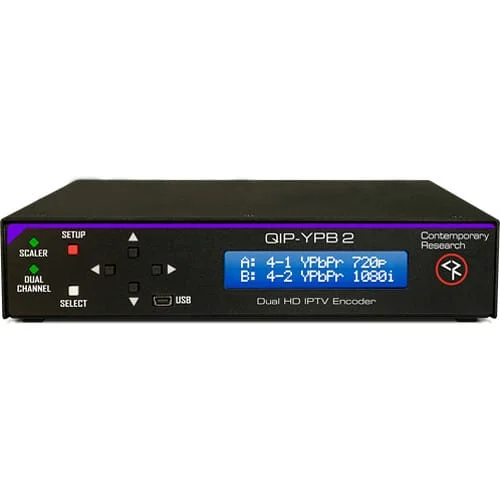

Contemporary Research QIP-YPB2 IPTV Encoder

Related products

•

  NMX-ENC-N1133A-C Encoder Card

  $1,966.00 Add to cart

  NMX-ENC-N1133A-C Encoder Card

  The new NMX-ENC-N1133A-C provides the functionality of the NMX-ENC-N1133A in a card form factor for use with the NMX-ACC-N9206 2RU Rack Mount Cage, providing a clean rack mount solution for multiple encoders and decoders. It Features improved digital pixel reproduction and cut the already imperceptible latency in half. Packetized video streams not only remain visually lossless throughout distribution, they also arrive instantly. It has separate HDMI and VGA/RGB inputs, supports PoE, AES67, and has a separate SFP port. The SFP fiber path allows visually lossless video to be routed on a fiber-only network and extend signals beyond the reach of category cable. Added USB connectivity will enable users to extend USB over IP for select touch-enabled displays and KVM applications.

  The N1000 Series Encoders and Decoders are an affordable local AV over IP switching solution that packetizes video into a minimally compressed IP format to create anywhere from a small 2×1 seamless presentation switcher up to a mid-size matrix switcher using off-the-shelf network switches.

  Specifications

  Video	Digital Video Input: HDMI, DVI-D (through adapter), RGB/VGA Analog Video Input: HD-15 VGA, Component Component is supported through a passive adapter Video Output: Network video over Ethernet via RJ45 port or fiber via 1G SFP port, HDMI, DVI-D DVI-D is supported through a passive adapter Formats HDMI, DVI-D (through adapter), Dual-Mode DisplayPort (DP++), HDCP content protection support, RGBHV, YPbPr DVI-D and Dual-Mode DisplayPort (DP++) are supported through a passive adapter Progressive Input Resolutions Supports most common HD up to 1920×1200. **720×480 @ 59Hz, 640×480 @ 60Hz, **720×480 @ 60Hz, **720×576 @ 50Hz, 800×600 @ 56Hz, 800×600 @ 60Hz, **1280×720 @ 50Hz, **1280×720 @ 59Hz, **1280×720 @ 60Hz, 1360×768 @ 60Hz, 1366×768 @ 60Hz, 1024×768 @ 60Hz, 1280×800 @ 60Hz, 1152×864 @ 60Hz, 1600×900 @ 60Hz, 1440×900 @ 60Hz, 1280×960 @ 60Hz, 1280×1024 @ 60Hz, ***1600×1200 @ 60Hz, 1680×1050 @ 60Hz, 1920×1080 @ 23Hz, 1920×1080 @ 24Hz, 1920×1080 @ 25Hz, 1920×1080 @ 29Hz, 1920×1080 @ 30Hz, **1920×1080 @ 50Hz, **1920×1080 @ 59Hz, **1920×1080 @ 60Hz, **1920x1080i @ 50Hz, **1920x1080i @ 59Hz, **1920x1080i @ 60Hz, ***1920×1200 @ 60Hz Interlaced Input Resolutions Supports 1080i60. **720×480 @ 59Hz, 640×480 @ 60Hz, **720×480 @ 60Hz, **720×576 @ 50Hz, 800×600 @ 56Hz, 800×600 @ 60Hz, **1280×720 @ 50Hz, **1280×720 @ 59Hz, **1280×720 @ 60Hz, 1360×768 @ 60Hz, 1366×768 @ 60Hz, 1024×768 @ 60Hz, 1280×800 @ 60Hz, 1152×864 @ 60Hz, 1600×900 @ 60Hz, 1440×900 @ 60Hz, 1280×960 @ 60Hz, 1280×1024 @ 60Hz, ***1600×1200 @ 60Hz, 1680×1050 @ 60Hz, 1920×1080 @ 23Hz, 1920×1080 @ 24Hz, 1920×1080 @ 25Hz, 1920×1080 @ 29Hz, 1920×1080 @ 30Hz, **1920×1080 @ 50Hz, **1920×1080 @ 59Hz, **1920×1080 @ 60Hz, **1920x1080i @ 50Hz, **1920x1080i @ 59Hz, **1920x1080i @ 60Hz, ***1920×1200 @ 60Hz Analog Input Resolutions NOTE: Input resolutions supported @60Hz refresh rates are also supported @59.94Hz. Supports most common HD up to 1920×1200. **720×480 @ 59Hz, 640×480 @ 60Hz, **720×480 @ 60Hz, **720×576 @ 50Hz, 800×600 @ 56Hz, 800×600 @ 60Hz, **1280×720 @ 50Hz, **1280×720 @ 59Hz, **1280×720 @ 60Hz, 1360×768 @ 60Hz, 1366×768 @ 60Hz, 1024×768 @ 60Hz, 1280×800 @ 60Hz, 1152×864 @ 60Hz, 1600×900 @ 60Hz, 1440×900 @ 60Hz, 1280×960 @ 60Hz, 1280×1024 @ 60Hz, ***1600×1200 @ 60Hz, 1680×1050 @ 60Hz, 1920×1080 @ 23Hz, 1920×1080 @ 24Hz, 1920×1080 @ 25Hz, 1920×1080 @ 29Hz, 1920×1080 @ 30Hz, **1920×1080 @ 50Hz, **1920×1080 @ 59Hz, **1920×1080 @ 60Hz, **1920x1080i @ 50Hz, **1920x1080i @ 59Hz, **1920x1080i @ 60Hz, ***1920×1200 @ 60Hz Analog-To-Digital Conversion: 8-bit 165 MHz per each of three color channels NOTE: The N1133 Encoder does not accept Composite or S-Video (YC). **supported in component mode ***reduced blanking only
  Audio	Input Signal Types: Embedded audio on HDMI (DVI-D through adapter) or Analog Stereo (Balanced or Unbalanced) Output Signal Types: Ethernet at 48-kHz (standard SVSI audio stream or AES67, user selectable) HDMI Audio Formats: 8ch PCM Analog Audio Format: Stereo 2-channel Analog-To-Digital Conversion: 16-bit 32 kHz, 44.1 kHz and 48 kHz
  Latency	Video Latency: 10 ms at 60 fps Audio Latency: standard SVSI audio stream = 17 ms(synced to video); AES67 = <1 ms adjustable to 17 ms Note: Video and audio latency values are the combined encode plus decode latency. Total latency from source to screen will also include any network latency. Note: Scaling adds one frame of latency (17ms at 60fps).
  Communications	Ethernet P0: 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP P1: 1 Gbps port which accepts compatible fiber transceivers or direct attach cables (fiber or copper cabling) HDMI: HDCP, EDID management
  Ports	+12V 2A: One 12 Volt DC power input P0: 8-wire RJ45 female 10/100/1000 Mbps 10/100/1000Base-T auto-sensing gigabit Ethernet switch port Provides the network connection, network AV video, and power to the Encoders and Decoders P1: SFP port (SFP fiber transceiver or direct attach cable not included) for MPC compressed networked AV video Provides network connection to the Encoders and Decoders IR: 2-pin terminal Phoenix connector Provides Infrared (IR) output only (33-60 kHz; typically 39 kHz). Emitter may be necessary (not included) RS232: 3-pin terminal Phoenix connector which provides a serial control interface. Full duplex communication. Available terminal speed settings: 1200-115200 baud rate AUDIO: 5-pin terminal Phoenix connector which provides user-selectable balanced/unbalanced input. Dedicated audio input HDMI IN: HDMI video input VGA IN: DB15 analog input USB connectors (front panel): USB-B control input and two USB-A control inputs
  Controls and Indicators – Front Panel	RESET Button: Recessed pushbutton Press to initiate a ‘warm restart’ causing the processor to reset, but not lose power. A reset does NOT affect the current settings ID Button: Recessed pushbutton Press to send a notification out on the network to identify the unit (the notification causes a pop-up dialog in N-Able and N-Command) POWER LED: On solid (green) when operating power is supplied (via PoE or local power supply) This activity is also shown by the PWR LED on the rear panel STATUS LED: On flashing (green) when there is software activity This activity is also shown by the STAT LED on the rear panel
  Controls and Indicators – Rear Panel	PWR LED: Same as POWER LED described above HDMI LED: On (green) when there is a connection to a valid video source STAT LED: Same as STATUS LED described above STRM LED: On (green) when the unit is streaming video
  Environmental	Temperature: 32° to 104°F (0° to 40°C) Humidity: 10% to 90% RH (non-condensing) Heat Dissipation: Up to ~44 BTU/hr
  General	Regulatory Compliance: FCC, CE, and NTRL Recommended Accessories: NMX-ACC-N9206 (FGN9206), 2RU Rack Mount Cage with Power for Six SVSI N-Series Card Units
  FG Numbers	FGN1133A-CD

  SKU: FGN1133A-CD Categories: AMX, Encoder Card, Encoders/Decoders Brand: AMX

  $1,966.00
•

  Contemporary Research IP-SDI 4i IPTV Decoder with Universal Rackmount

  $1,253.00 Add to cart

  Contemporary Research IP-SDI 4i IPTV Decoder with Universal Rackmount

  Contemporary Research IP-SDI 4i Overview

  Decode digital video and audio for compatibility with television displays with the Contemporary Research IP-SDI 4i IPTV Decoder with Universal Rackmount for increased efficiency for your viewing setup. The IP-SDI 4i decodes MPEG-2 and H.264 video with internal scaling from 480i to 1080p resolution. A 3G-SDI and a HDMI output operate simultaneously.

  The IP-SDI 4i is compatible with unicast or multicast UDP and RTP IP streams with control over the front-panel buttons, handheld IR remote, onboard web GUI, or external control. The free CR Toolbox software allows you to manage the channel list for the device. A universal rackmount and power supply are included for easy installation.

  Features at a Glance

  • Outputs operate simultaneously
  • Channel selection by direct channel entry or channel up/down
  • Decodes analog and digital closed captioning
  • Passes through 608 and 708 closed caption data on SDI output
  • RS-232 can control of up to 9 decoders from a single RS-232 port
  • Firmware updateable over Ethernet from CR Toolbox
  • Meets RoHS and California energy-saving standards

  SKU: 5117‐001 Categories: Decoders, DPA Microphones E/C, Encoders/Decoders Brand: DPA Microphones

  $1,253.00
•

  NMX-ENC-N1115-WP Wallplate Encoder

  $2,427.00 Add to cart

  NMX-ENC-N1115-WP Wallplate Encoder

  The N1000 Series Encoders and Decoders are an affordable local AV-over-IP switching solution that packetizes video into a minimally compressed IP format that provides excellent video quality at low latencies. This compression is perfect for point-to-point video distribution, small 2×1 switching applications, and larger switching applications (for example, 32×32), all using off-the-shelf layer-3 network switches.

  The NMX-ENC-N1115-WP provides the excellent encoding capabilities of the NMX-ENC-N1133 in a 2-gang wallplate format. This encoder can be easily mounted in a wall, lectern, or floor box using a standard 2-gang US back box, and connected to power and Ethernet using only a single category cable.

  Specifications

  Video	Digital Video Input: HDMI, DVI-D*, Dual-Mode DisplayPort (DP++)* Analog Video Input: HD-15 VGA, Component* Video Output: Video Output Formats: HDMI, DVI-D*, Dual-Mode DisplayPort (DP++)*, HDCP content protection support, RGBHV, YPbPr Progressive Input Resolutions Supports most common HD up to 1920×1200. Interlaced Input Resolutions Supports 1080i60. Analog Input Resolutions NOTE: Input resolutions supported @60Hz refresh rates are also supported @59.94Hz. Supports most common HD up to 1920×1200. Output Resolutions: Matched to inputs. Analog-To-Digital Conversion: 8-bit 165 MHz per each of three color channels NOTE: The N1115-WP does not accept Composite or S-Video (YC). Color Space: 4:2:2 *These signal types are supported through a passive adapter.
  Audio	Input Signal Types: Embedded audio on HDMI (DVI-D through adapter) or Analog Stereo Output Signal Types: Ethernet Analog Audio Format: 8ch PCM, Stereo 2-channel Analog-To-Digital Conversion: 16-bit 32 kHz, 44.1 kHz and 48 kHz
  Latency	Latency: 10 ms at 60 fps Bandwidth: 840 Mb/s (varies with resolution) Note: This is the combined encode plus decode latency. Total latency from source to screen will also include any network latency. Note: Scaling adds one frame of latency (17ms at 60fps).
  Communications	Ethernet: 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP HDMI: HDCP, EDID management
  Ports	P0: 8-wire RJ45 female 10/100/1000 Mbps 10/100/1000Base-T auto-sensing gigabit Ethernet switch port Provides the network connection, network AV video, and power to the Encoders and Decoders HDMI IN: HDMI video input VGA IN: DB15 analog input USB IN – Host: USB-B host input USB IN – Maintenance: USB-Mini maintenance input
  Controls and Indicators – Front Panel	RESET Button: Recessed pushbutton Press to initiate a ‘warm restart’ causing the processor to reset, but not lose power. A reset does NOT affect the current settings POWER LED: On solid (green) when operating power is supplied (via PoE or local power supply) AUDIO LED: On (green) when audio is transmitting. ANALOG VIDEO LEDs: On (green) when analog source is available and transmitting. DIGITAL VIDEO LED: On (green) when video source is available and transmitting HDCP LED: On (green) when the source is using HDCP STREAM LED: On (green) when the unit is streaming video STATUS LED: Flashing (green) when the unit is active. LINK/ACT LED: Flashing (yellow) when network traffic is being sent or received.
  Power Supply	Power over Ethernet Can be powered via a PoE switch or other equipment with a PoE source. Conforms to IEEE 802.3af Class 3 (802.3at Type 1) Point-to-point applications between the encoder and a decoder requires a PoE injector to power the wallplate encoder. Note: In order for the unit to receive Power over Ethernet (PoE), it must be connected to a switch or other equipment that has a PoE PSE (Power Sourcing Equipment) port. Warning: Do not run wiring that is connected to a PoE PSE port outside of the building where the PSE resides. It is for intra-building use only.
  Environmental	Temperature (Operating): 32° to 104°F (0° to 40°C) Temperature (Storage): -22° to 158°F (-30° to 70°C) Humidity (Operating): 10% to 90% RH (non-condensing) Humidity (Storage): 0% to 90% RH (non-condensing) Heat Dissipation: Up to ~26 BTU/hr
  General	Dimensions (HWD): 4.06″ x 3.5″ x 2.25″ (10.31 cm x 8.84 cm x 5.72 cm) Weight: .75 lb (0.34 kg) Airflow: Natural convection via vent openings on front, back, and top Installation Mounts onto standard 2 gang US back boxes Mounts into standard décor style wallplates (not included) Regulatory Compliance: FCC, CE, and NTRL Recommended Accessories Compatible with NMX-ENC-N1222, NMX-ENC-N1233, NMX-ENC-N1512, and NMX-NVR-N6123 PS-POE-AT-TC High-Power PoE Injector, 802.3AT Compliant FG423-84)
  FG Numbers	FGN1115-WP-WH (White) FGN1115-WP-BL (Black)

  SKU: FGN1115-WP-BL Categories: AMX, Encoders/Decoders, Wall Plate Encoder Brand: AMX

  $2,427.00
•

  Contemporary Research IP-SDI 4i IPTV Decoder with Universal Rackmount

  $1,524.00 Add to cart

  Contemporary Research IP-SDI 4i IPTV Decoder with Universal Rackmount

  SKU: 5302‐001 Categories: Decoders, DPA Microphones E/C, Encoders/Decoders Brand: DPA Microphones

  $1,524.00
